Fast residential charging, recharging your EV battery in just a few hours.
| Flexible Design: Integrates into different types of electric vehicles.
| Custom Settings: Control the charging process through the mobile app with customizable options.
| Safety First: Designed with safety features to protect users and equipment.
| Flexible Design: Integrates into different types of electric vehicles.
| Custom Settings: Control the charging process through the mobile app with customizable options.
| Safety First: Designed with safety features to protect users and equipment.
| Model | T2S/ B2N | T2S/ BT2N |
| Power Supply | 7.4 kW | 22 KW |
| Input Voltage | AC230+15% | AC400+15% |
| Frequency | 50 Hz / 60 Hz | |
| Amperage | 6-32A | |
| Max. power Output | 7.4kW | 22kW |
| Net Weight | 9.3kg | |
| Dimension | 360 x 278 x 152 mm | |
| Charging Interface | IEC 62196-2 Compliant, Type 2 | |
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | |
| Multiple Protection | UUP,OUP,RCD (DC 6MA), SPD , Ground Fault Protection OCD, OTP, Control Pilot Fault Protection | |
| Operating Temprerature | -40C ~ 85C | |
| Relative Humidity | Up to 95% non-condensing | |
| Cable Length | 5m Standard Cable | |
| Warranty | 2 years | |
| Model | T2S/ B2N | T2S/ BT2N |
| Power Supply | 7.4 kW | 22 KW |
| Input Voltage | AC230+15% | AC400+15% |
| Frequency | 50 Hz / 60 Hz | |
| Amperage | 6-32A | |
| Max. power Output | 7.4kW | 22kW |
| Net Weight | 9.3kg | |
| Dimension | 360 x 278 x 152 mm | |
| Charging Interface | IEC 62196-2 Compliant, Type 2 | |
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | |
| Multiple Protection | UUP,OUP,RCD (DC 6MA), SPD , Ground Fault Protection OCD, OTP, Control Pilot Fault Protection | |
| Operating Temprerature | -40C ~ 85C | |
| Relative Humidity | Up to 95% non-condensing | |
| Cable Length | 5m Standard Cable | |
| Warranty | 2 years | |
| Model OCPP | OCPP/A2N-P | OCPP/AT2N-P |
| Maximun Power | 7.4kW | 22kW |
| Input/output Voltage | AC230 1-Phase | AC400 3-Phase |
| Charging Current Range | 50HZ/60HZ | |
| Display | LED Light | |
| DLB | o | o |
| RFID | / | / |
| WIFI | / | / |
| Ethernet | / | / |
| Bluetooth | / | / |
| 4G | / | / |
| Over Voltage & Under Voltage Protection | / | / |
| Emergency Stop | / | / |
| Over Current Protection | / | / |
| CP Signal Short Circuit Protection | / | / |
| Over Temperature Protection | / | / |
| Ligthning Protection | / | / |
| Contractor Adhesion Protection | / | / |
| Protection Degree | / | / |
| Enviroument Temperature | / | / |
| Maximun Atitude | / | / |
| Model (OCPP) | OCPP/A2N-P | OCPP/AT2N-P |
| Maximun Power | 7.4kW | 22kW |
| Input/output Voltage | AC230 1-Phase | AC400 3-Phase |
| Charging Current Range | 50Hz / 60Hz | |
| Display | LED Display | |
| DLB | o | o |
| RFID | / | / |
| WIFI | / | / |
| Ethernet | / | / |
| Bluetooth | / | / |
| 4G | / | / |
| Over Voltage & Under Voltage Protection | / | / |
| Emergency Stop | / | / |
| Over Current Protection | / | / |
| CP Signal Short Circuit Protection | / | / |
| Over Temperature Protection | / | / |
| Ligthning Protection | / | / |
| Contractor Adhesion Protection | / | / |
| Protection Degree | / | / |
| Enviroument Temperature | / | / |
| Maximun Atitude | / | / |

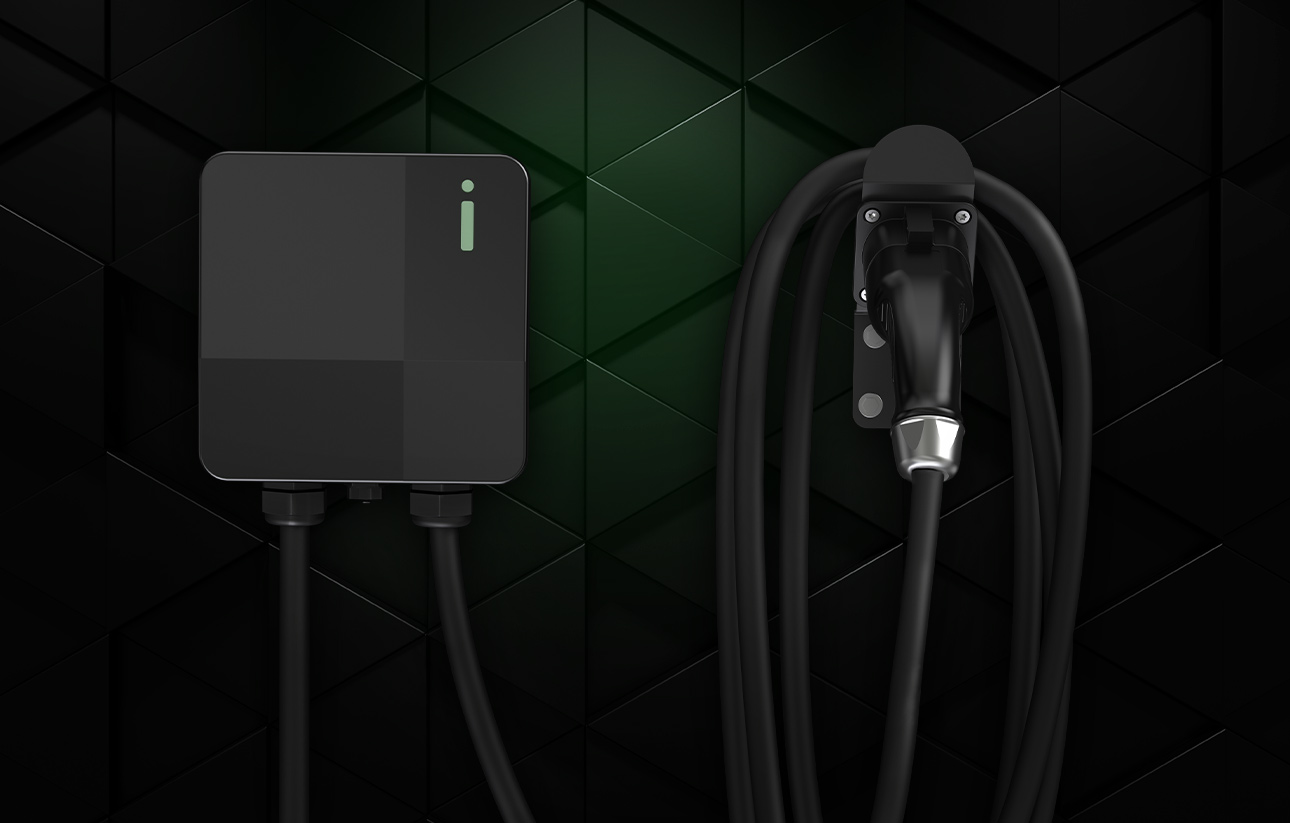

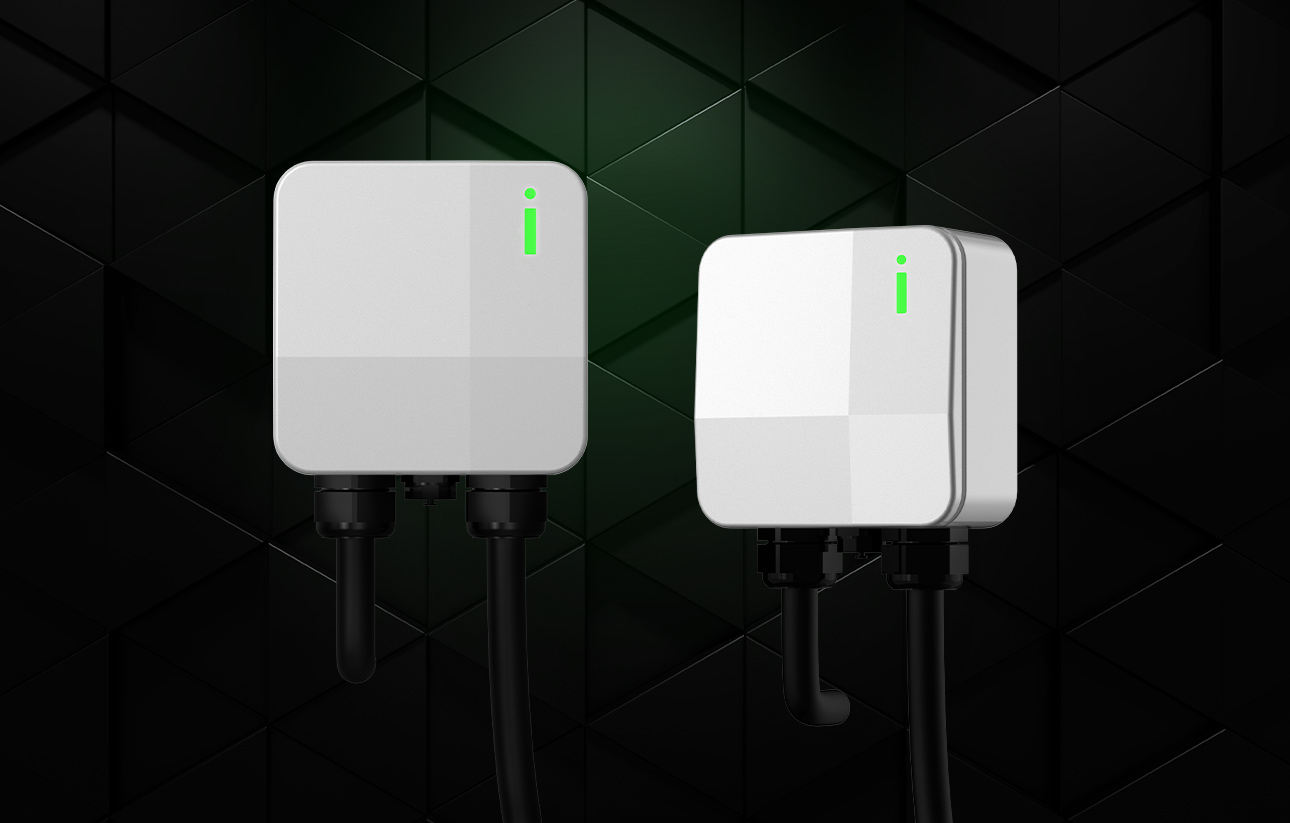

| Model (ZRC Mini) | ZRC Mini/AC07 | ZRC Mini/AC11 |
| Power Supply | 1P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A |
| Max. Power Output | 7kW | 11kW |
| Net Weight | 4.85kg | 6.2 kg |
| Dimension | 220 x 220 x 95 mm | |
| Charging Interface | IEC 62196-2 Compliant, Type 2 | |
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | |
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | |
| Operating Temperature | -30°C ~ 50°C | |
| Relative Humidity | Up to 95% non-condensing | |
| Cable Length | 5m Standard Cable | |
| Warranty | 2 years | |
| Model (ZRC Mini) | ZRC Mini/AC07 | ZRC Mini/AC11 |
| Power Supply | 1P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A |
| Max. Power Output | 7kW | 11kW |
| Net Weight | 4.85kg | 6.2 kg |
| Dimension | 220 x 220 x 95 mm | |
| Charging Interface | IEC 62196-2 Compliant, Type 2 | |
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | |
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | |
| Operating Temperature | -30°C ~ 50°C | |
| Relative Humidity | Up to 95% non-condensing | |
| Cable Length | 5m Standard Cable | |
| Warranty | 2 years | |

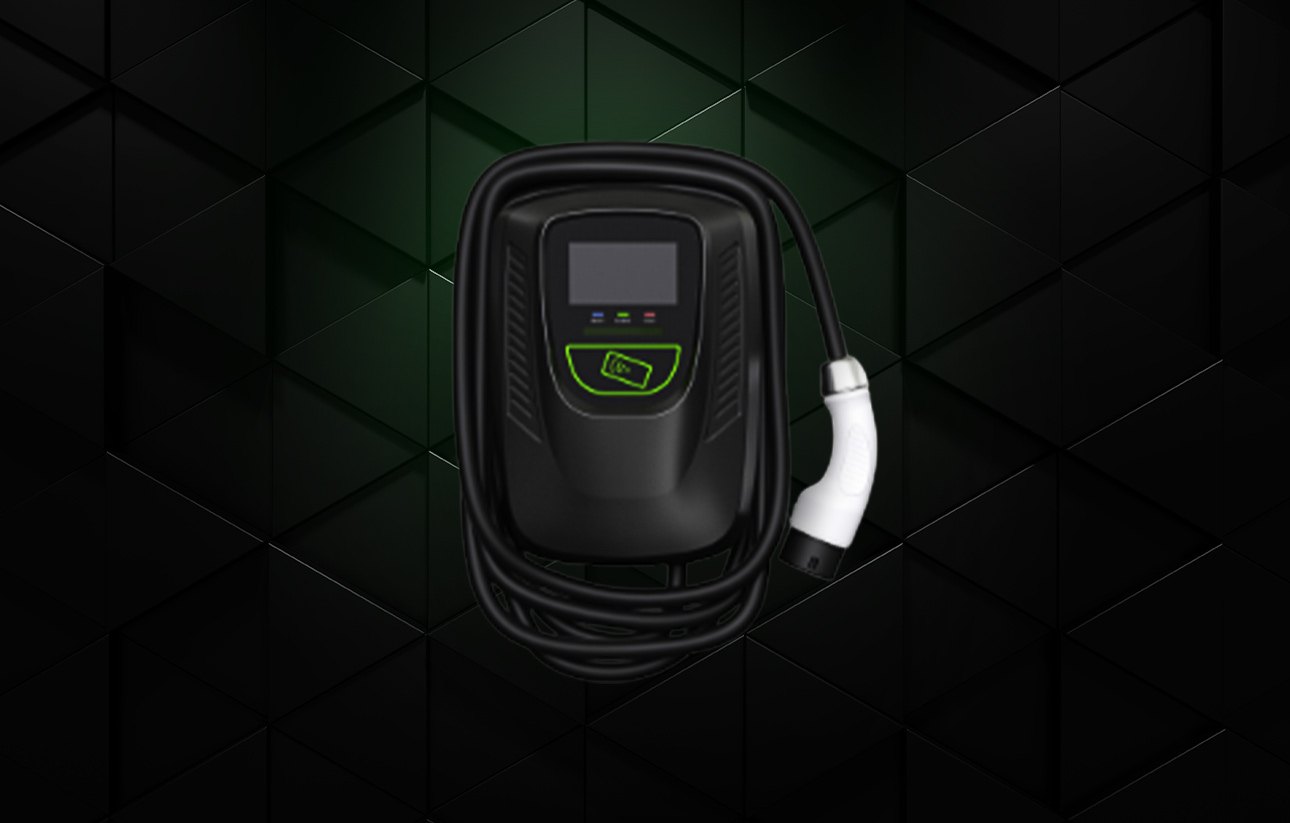

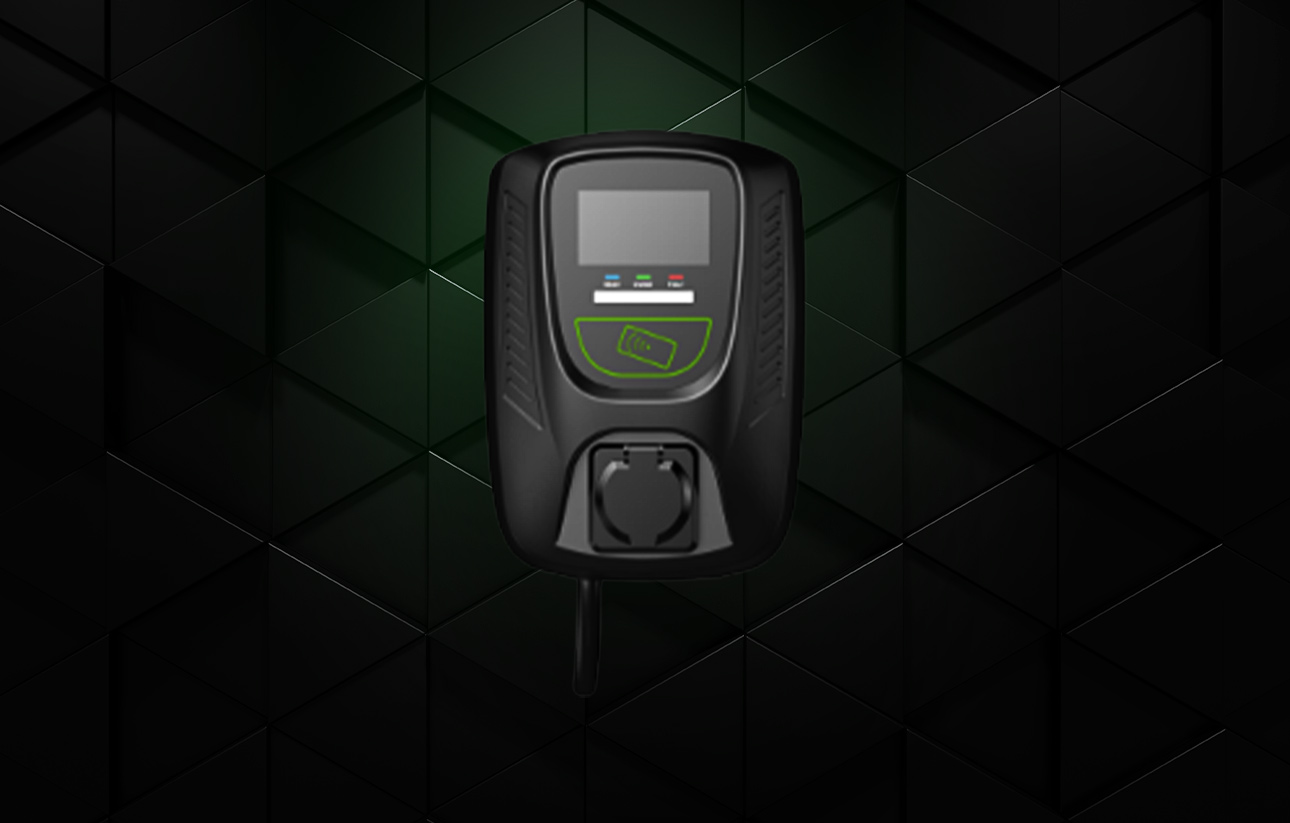

| Model (ZRC10) | ZRC10/ AC07 | ZRC10/ AC11 | ZRC10/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 5.2kg/3.2kg | 4.9kg/3.9kg | 6.5kg/3.9kg |
| Dimension (Cable / Socket) | 351 × 250 x 130mm / 351 x 250 x 155mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Socket or Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C - 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||
| Model (ZRC10) | ZRC10/ AC07 | ZRC10/ AC11 | ZRC10/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 5.2kg/3.2kg | 4.9kg/3.9kg | 6.5kg/3.9kg |
| Dimension (Cable / Socket) | 351 × 250 x 130mm / 351 x 250 x 155mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Socket or Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C - 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||

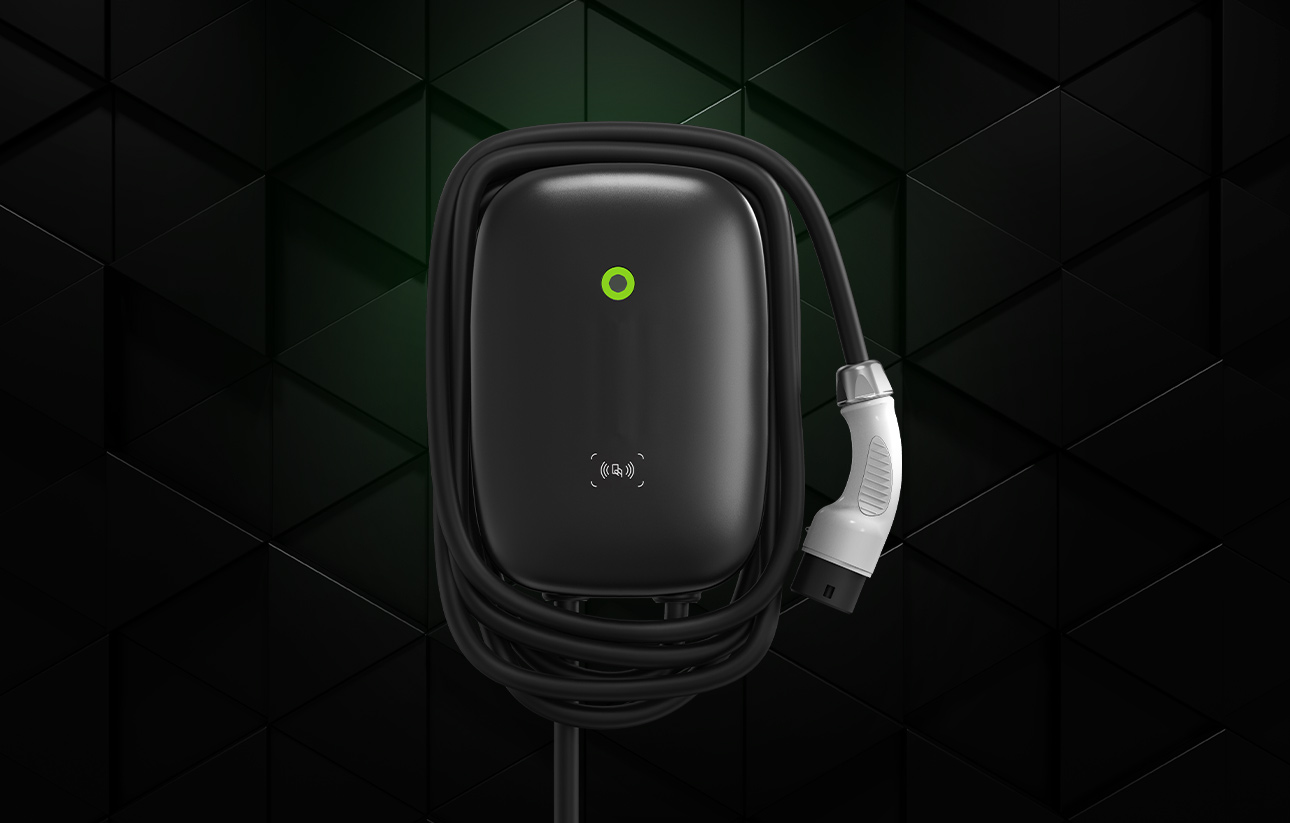

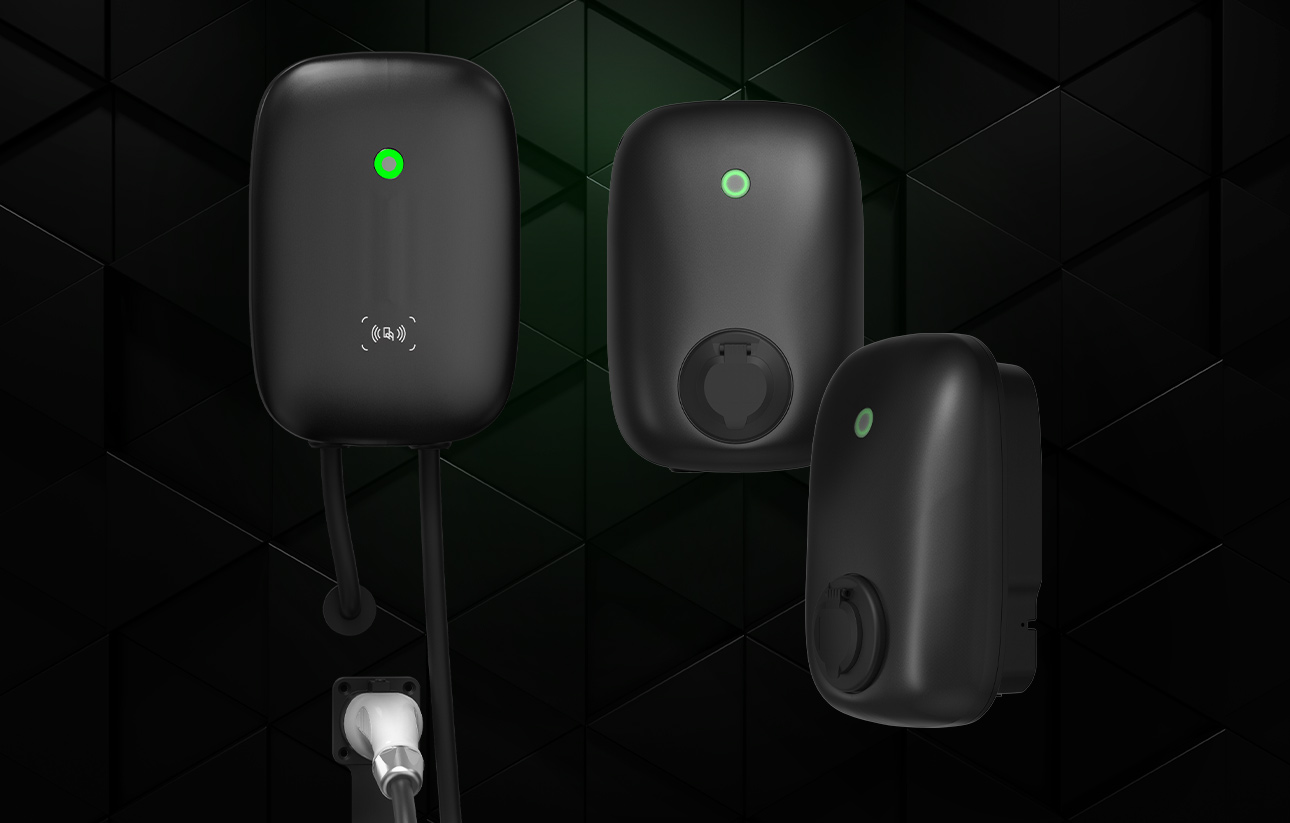

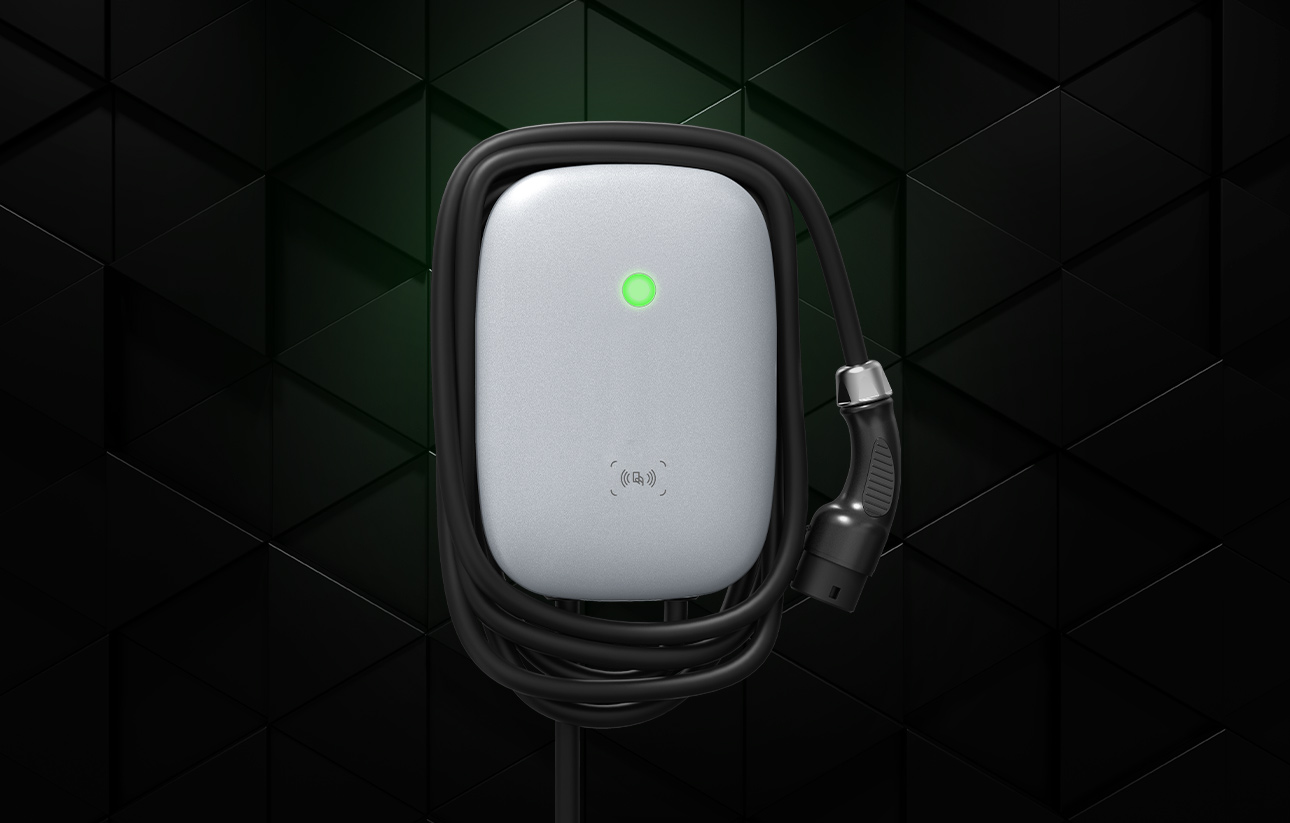

| Model (ZRC11) | ZRC11/ AC07 | ZRC11/ AC11 | ZRC11/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 4.6kg/3.2kg | 4.4kg/3.4kg | 5.7kg/3.4kg |
| Dimension (Cable / Socket) | 361 × 250 x 100mm / 361.5 x 250 x 163mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Socket or Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||
| Model (ZRC11) | ZRC11/ AC07 | ZRC11/ AC11 | ZRC11/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 4.6kg/3.2kg | 4.4kg/3.4kg | 5.7kg/3.4kg |
| Dimension (Cable / Socket) | 361 × 250 x 100mm / 361.5 x 250 x 163mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Socket or Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||

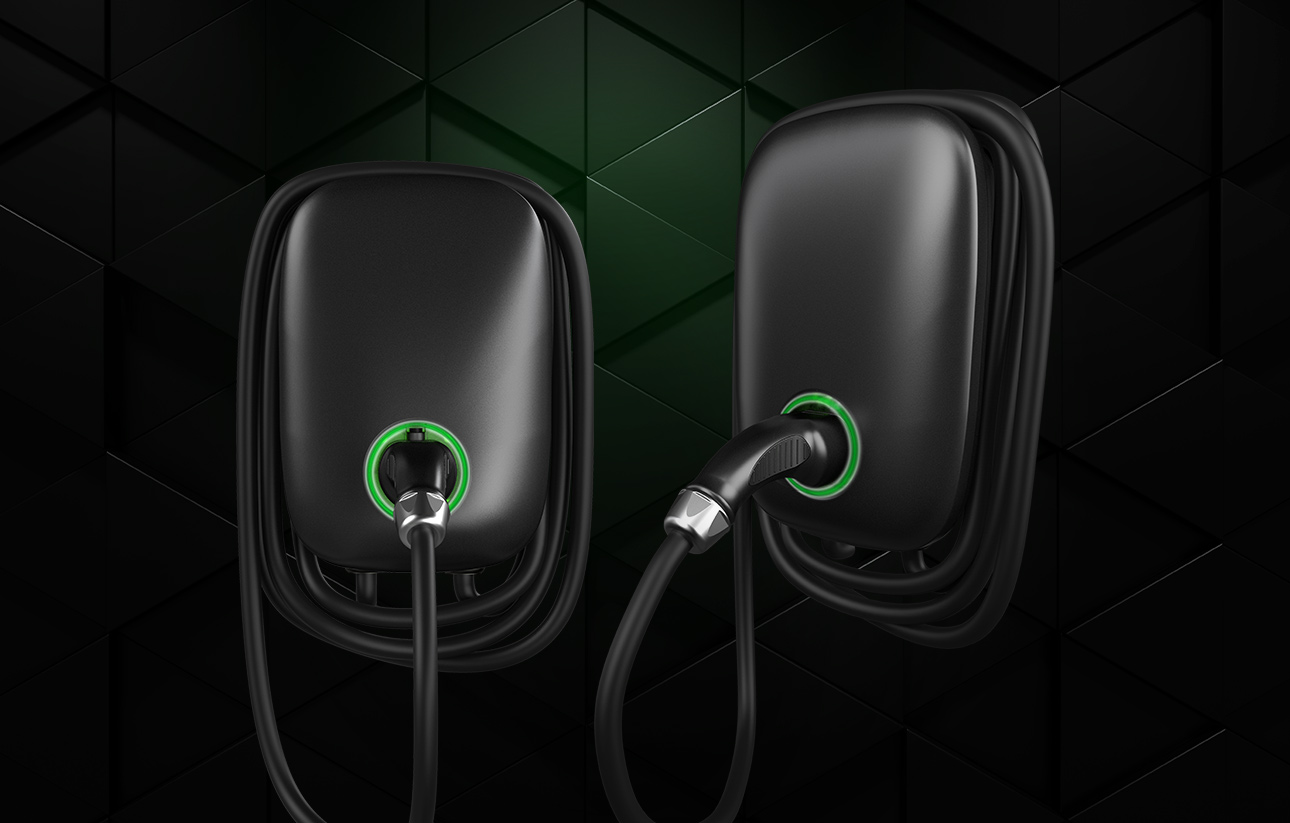

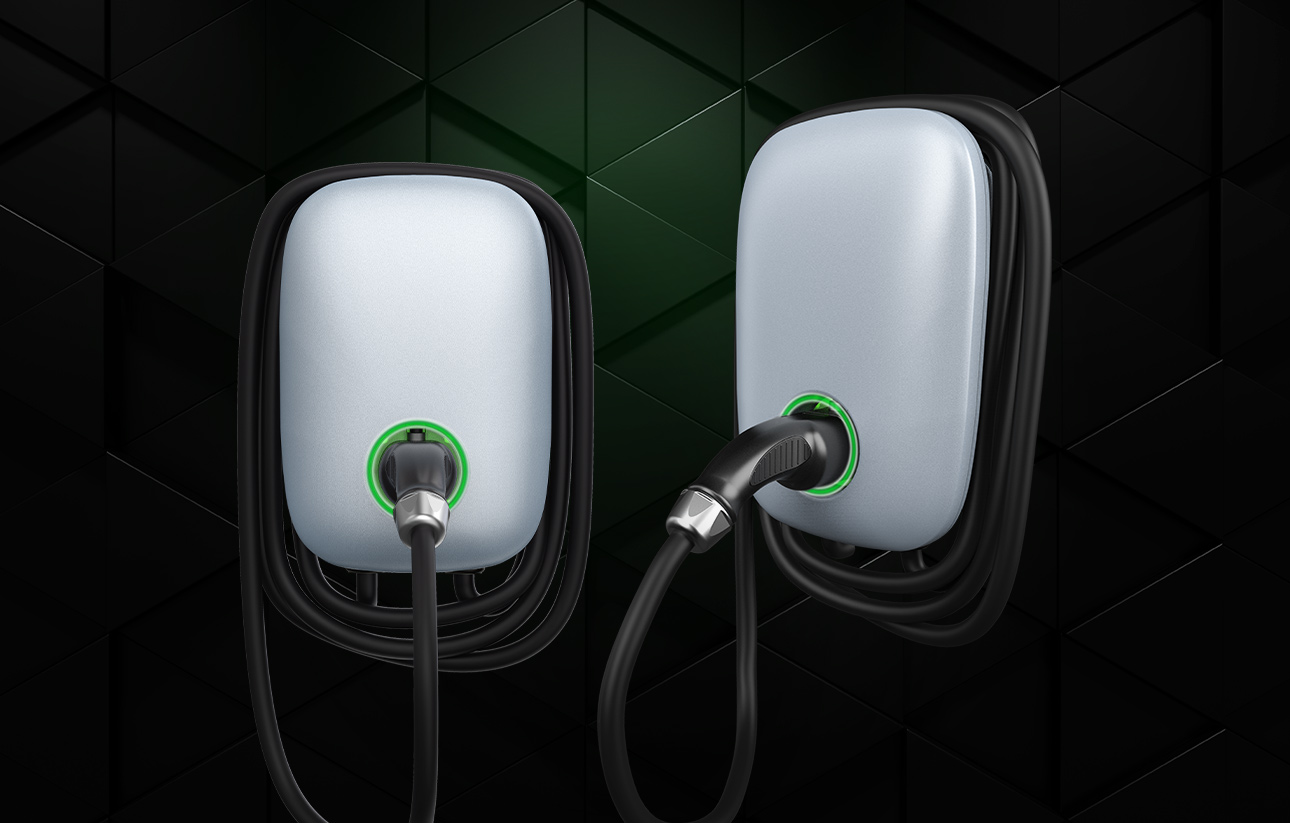

| Model (ZRC12) | ZRC12/ AC07 | ZRC12/ AC11 | ZRC12/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 4.8kg | 4.5kg | 5.8kg |
| Dimension (Cable / Socket) | 351 × 250 x 111.5mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||
| Model (ZRC12) | ZRC12/ AC07 | ZRC12/ AC11 | ZRC12/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 4.8kg | 4.5kg | 5.8kg |
| Dimension (Cable / Socket) | 351 × 250 x 111.5mm | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 Plug | ||
| Safety Compliance | IEC 61851-1, IEC 61851-21-2 | ||
| Multiple Protection | UVP, OVP, RCD (DC 6mA), SPD, Ground Fault Protection OCP, OTP, Control Pilot Fault Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Up to 95% non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 2 years | ||

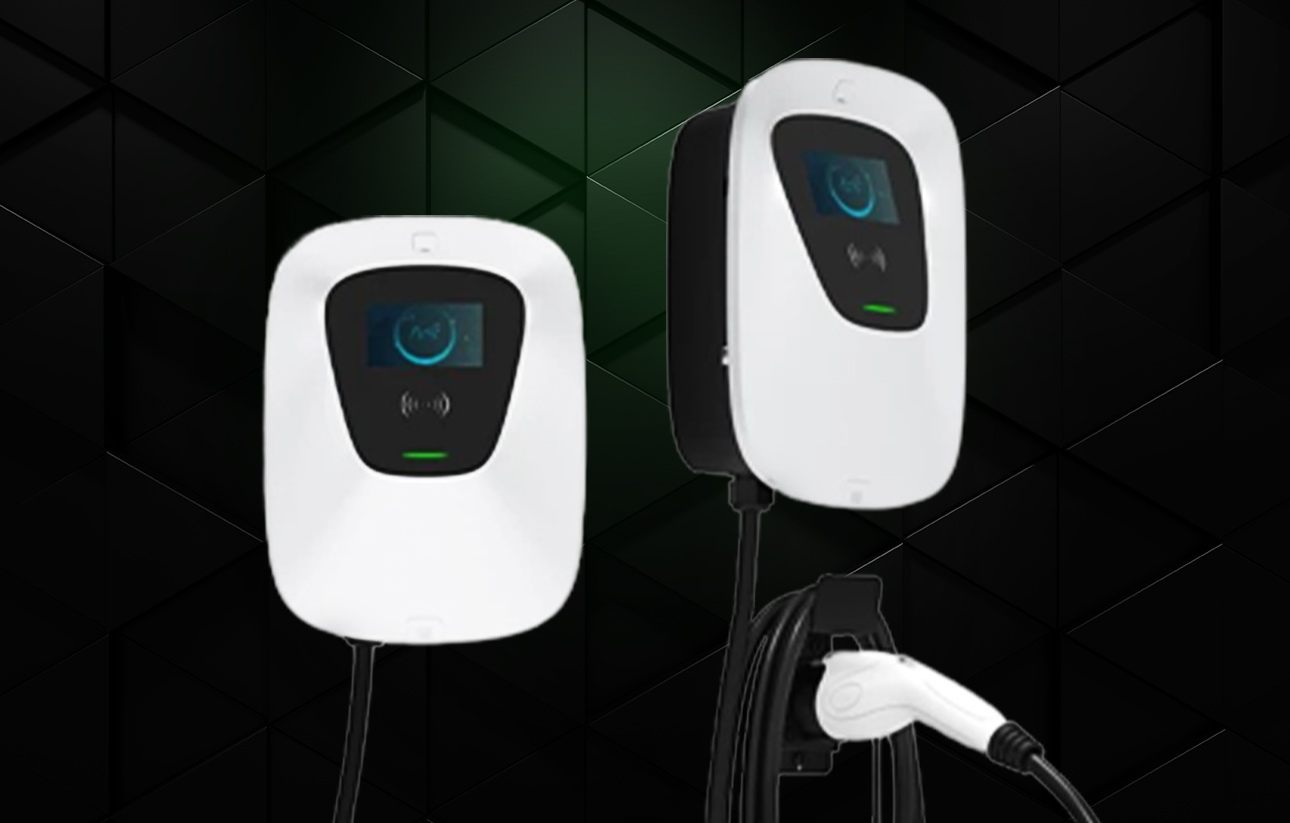

| Model (ZRC20) | ZRC20/ AC07 | ZRC20/ AC11 | ZRC20/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7.4kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 5kg | ||
| Dimension (Cable / Socket) | 300 × 154 x 420mm | ||
| LCD Display | 4.3” Color Touch Screen | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 | ||
| Safety Compliance | IEC 61851-1, IEC 62196-1, IE 62196-2, SAE J1772-2017 | ||
| Multiple Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Max. 90% RH, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 3 years | ||
| Model (ZRC20) | ZRC20/ AC07 | ZRC20/ AC11 | ZRC20/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7.4kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 5kg | ||
| Dimension (Cable / Socket) | 300 × 154 x 420mm | ||
| LCD Display | 4.3” Color Touch Screen | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 | ||
| Safety Compliance | IEC 61851-1, IEC 62196-1, IE 62196-2, SAE J1772-2017 | ||
| Multiple Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Max. 90% RH, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 3 years | ||

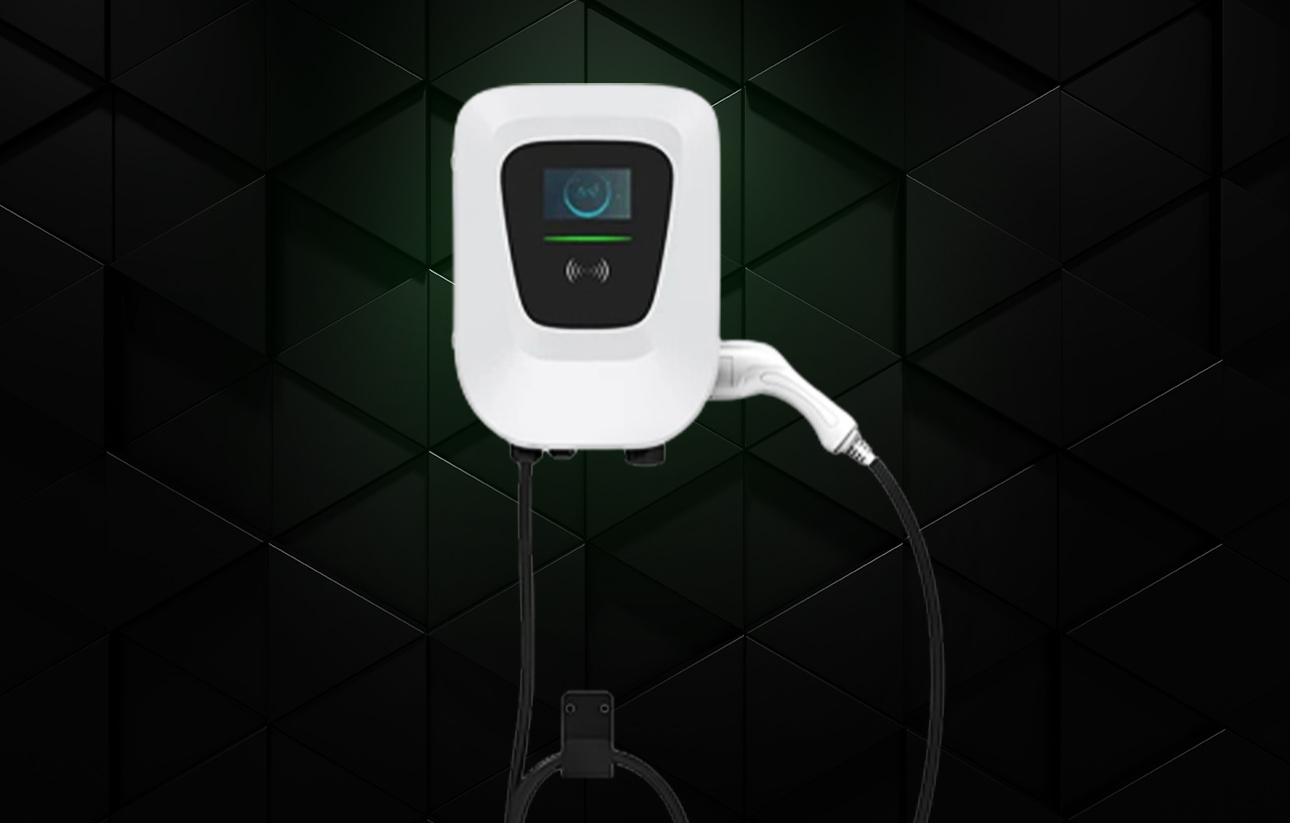

| Model (ZRC21) | ZRC21/ AC07 | ZRC21/ AC11 | ZRC21/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7.4kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 7.5kg | ||
| Dimension (Cable / Socket) | 300 × 154 x 420mm | ||
| LCD Display | 4.3” Color Touch Screen | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 | ||
| Safety Compliance | IEC 61851-1, IEC 62196-1, IE 62196-2, SAE J1772-2017 | ||
| Multiple Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Max. 90% RH, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 3 years | ||
| Model (ZRC21) | ZRC21/ AC07 | ZRC21/ AC11 | ZRC21/ AC22 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 230Vac+10% | 400Vac+10% | 400Vac+10% |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Amperage | 32A | 16A | 32A |
| Max. Power Output | 7.4kW | 11kW | 22kW |
| Net Weight (Cable / Socket) | 7.5kg | ||
| Dimension (Cable / Socket) | 300 × 154 x 420mm | ||
| LCD Display | 4.3” Color Touch Screen | ||
| Charging Interface | IEC 62196-2 Compliant, Type 2 | ||
| Safety Compliance | IEC 61851-1, IEC 62196-1, IE 62196-2, SAE J1772-2017 | ||
| Multiple Protection | Over/Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||
| Operating Temperature | -30°C ~ 50°C | ||
| Relative Humidity | Max. 90% RH, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 3 years | ||
High-speed charging for commercial and public use, recharging your EV battery in minutes.
| High-Speed Charging: Fast-charge a variety of electric vehicle models, ensuring quick and convenient charging.
| Remote Management: Control the charging process through our mobile app for easy and convenient management.
| Enhanced Safety: Designed with built-in safety features to ensure a secure charging experience.
| High-Speed Charging: Fast-charge a variety of electric vehicle models, ensuring quick and convenient charging.
| Remote Management: Control the charging process through our mobile app for easy and convenient management.
| Enhanced Safety: Designed with built-in safety features to ensure a secure charging experience.
| Model | BDC-60-D | BDC-90-D | BDC-120-D | BDC-180-D |
| Shell material | Sheet meal | |||
| Dimension | 800 x800 x 1800 (LxWxT) | |||
| Weight | 500kG | |||
| installation Method | Floor-stand Type | |||
| Cable Routing | Bottom Inlet Wiring, Up Outlet Wiring | |||
| Cable Length | 5m | |||
| Charging Outlets | Double (CCSI+CCSI) Double (CCSI + CHADEMO) Double (CCS2 + GBT) Double (CHADEMO + CAHDEMO) | Double (CCSI+CCS2) Double (CCS2 + CHADEMO) Double (CHADEMO + GBT) | Double (CCSI+CCS2) Double (CCSI + GBT) Double (GBT + GBT) | Double (CCS2+CCS2) Double (CCS2 + CHADEMO) Double (CAHDEMO + GBT) |
| Connectivity Authorization | RFIP, APP | |||
| Screen | 9.1 inch LCD screen/ LED light | |||
| Electrical Specification | ||||
| AC Input Voltage | AC380V=15%, 3P+N+PEAC | |||
| Input Frequency | 50Hz/60Hz | |||
| Comsumption | <24wh | |||
| Rated Power | 60kW | 90kW | 120kW | 180kW |
| Output Viltage Range | CCS1/CCS2/GBT:150Vdc-1000Vdc; CHADEMO: 0-125A | |||
| Output Current | CCS1/CCS2/BGT: 0-250A ; CHADEMO: 0-125A | |||
| Efficiency | >95% | |||
| Power Factor | >0.99 (Load:100%) | |||
| User Interface | Emergency Stop Button, LED indicator, Card swiping, Touch Screen | |||
| Charging Stands | IEC61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851- 23:2014; EN 61851-24:2014 | |||
| OCPP | OCPP 1.6 | |||
| Network Interface | Ethernect/4G | |||
| Application Place | Indoor/Outdoor | |||
| Working Latitude | <2000m | |||
| Working Temperature | -30OE~+50E | |||
| Working Humudity | 5% - 90% | |||
| Protection Level | 1P55 | |||
| Natural Cooling | Forced-Air Cooling | |||
| MTBF | 24 Month Warranty | |||
| Security Design | Over/Under Voltage Protection, Overload Protection, Current Leakage protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection | |||
| Model | BDC-60-D | BDC-90-D | BDC-120-D | BDC-180-D |
| Shell material | Sheet meal | |||
| Dimension | 800 x800 x 1800 (LxWxT) | |||
| Weight | 500kG | |||
| installation Method | Floor-stand Type | |||
| Cable Routing | Bottom Inlet Wiring, Up Outlet Wiring | |||
| Cable Length | 5m | |||
| Charging Outlets | Double (CCSI+CCSI) Double (CCSI + CHADEMO) Double (CCS2 + GBT) Double (CHADEMO + CAHDEMO) | Double (CCSI+CCS2) Double (CCS2 + CHADEMO) Double (CHADEMO + GBT) | Double (CCSI+CCS2) Double (CCSI + GBT) Double (GBT + GBT) | Double (CCS2+CCS2) Double (CCS2 + CHADEMO) Double (CAHDEMO + GBT) |
| Connectivity Authorization | RFIP, APP | |||
| Screen | 9.1 inch LCD screen/ LED light | |||
| Electrical Specification | ||||
| AC Input Voltage | AC380V=15%, 3P+N+PEAC | |||
| Input Frequency | 50Hz/60Hz | |||
| Comsumption | <24wh | |||
| Rated Power | 60kW | 90kW | 120kW | 180kW |
| Output Viltage Range | CCS1/CCS2/GBT:150Vdc-1000Vdc; CHADEMO: 0-125A | |||
| Output Current | CCS1/CCS2/BGT: 0-250A ; CHADEMO: 0-125A | |||
| Efficiency | >95% | |||
| Power Factor | >0.99 (Load:100%) | |||
| User Interface | Emergency Stop Button, LED indicator, Card swiping, Touch Screen | |||
| Charging Stands | IEC61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851- 23:2014; EN 61851-24:2014 | |||
| OCPP | OCPP 1.6 | |||
| Network Interface | Ethernect/4G | |||
| Application Place | Indoor/Outdoor | |||
| Working Latitude | <2000m | |||
| Working Temperature | -30OE~+50E | |||
| Working Humudity | 5% - 90% | |||
| Protection Level | 1P55 | |||
| Natural Cooling | Forced-Air Cooling | |||
| MTBF | 24 Month Warranty | |||
| Security Design | Over/Under Voltage Protection, Overload Protection, Current Leakage protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection | |||
| Model | BBDC-40 |
| Shell material | Sheet meal |
| Dimension | 450 x250 x 850 (LxWxT) |
| Weight | <65KG |
| installation Method | Wall-mounted |
| Cable Routing | Bottom Iniet Wiring, Up Outlet Wiring |
| Cable Length | 5m |
| Charging Outlets | Single (CCSI/CCS2/GBT) |
| Connectivity Authorization | RFIP, APP |
| Screen | 9.1 inch LCD screen/ LED light |
| Electrical Specification | |
| AC Input Voltage | AC380V= 15%, 3P +N+PEAC |
| Input Frequency | 50Hz/60Hz |
| Comsumption | <15wh |
| Rated Power | 40kW |
| Output Viltage Range | CCS1/CCS2/GBT:150Vdc-1000Vdc |
| Output Current | 0-133A |
| Efficiency | >95% |
| Power Factor | >0.99 (Load:100%) |
| User Interface | Emergency Stop Button, LED indicator, Card swiping, Touch Screen |
| Charging Stands | IEC61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851- 23:2014; EN 61851-24:2014 |
| OCPP | OCPP 1.6 |
| Network Interface | Ethernect/4G |
| Application Place | Indoor/Outdoor |
| Working Latitude | <2000m |
| Working Temperature | -OE~+50E |
| Working Humudity | 5% - 90% |
| Protection Level | 1P55 |
| Natural Cooling | Forced-Air Cooling |
| MTBF | 24 Month Warranty |
| Security Design | Over/Under Voltage Protection, Overload Protection, Curret Leakage protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection |
| Model | BBDC-40 |
| Shell material | Sheet meal |
| Dimension | 450 x250 x 850 (LxWxT) |
| Weight | <65KG |
| installation Method | Wall-mounted |
| Cable Routing | Bottom Iniet Wiring, Up Outlet Wiring |
| Cable Length | 5m |
| Charging Outlets | Single (CCSI/CCS2/GBT) |
| Connectivity Authorization | RFIP, APP |
| Screen | 9.1 inch LCD screen/ LED light |
| Electrical Specification | |
| AC Input Voltage | AC380V= 15%, 3P +N+PEAC |
| Input Frequency | 50Hz/60Hz |
| Comsumption | <15wh |
| Rated Power | 40kW |
| Output Viltage Range | CCS1/CCS2/GBT:150Vdc-1000Vdc |
| Output Current | 0-133A |
| Efficiency | >95% |
| Power Factor | >0.99 (Load:100%) |
| User Interface | Emergency Stop Button, LED indicator, Card swiping, Touch Screen |
| Charging Stands | IEC61851-21-2:2021; IEC 61000-6-2:2019; EN61000-6-4:2019; IEC 61851-1:2019; EN 61851- 23:2014; EN 61851-24:2014 |
| OCPP | OCPP 1.6 |
| Network Interface | Ethernect/4G |
| Application Place | Indoor/Outdoor |
| Working Latitude | <2000m |
| Working Temperature | -OE~+50E |
| Working Humudity | 5% - 90% |
| Protection Level | 1P55 |
| Natural Cooling | Forced-Air Cooling |
| MTBF | 24 Month Warranty |
| Security Design | Over/Under Voltage Protection, Overload Protection, Curret Leakage protection, Grounding Protection, Over Temp Protection, Lightning Surge Protection |
| Model (ZRC30) | ZRC30/ DC30 | ZRC30/ DC60 | ZRC30/ DC602 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 400Vac+10% | 400Vac+10% | 400Vac+10% |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Output Voltage | 200-1000VDC | 200-1000VDC | 200-1000VDC |
| Amperage | 100A | 200A | 100A x2 |
| Max. Power Output | 30kW | 60kW | 60kW |
| Net Weight | 130kg | ||
| Dimension | 500 × 650 x 590mm | ||
| LCD Display | 7” Touch Screen | ||
| Safety Compliance | IEC 61851 | ||
| Multiple Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Residual Current, Over Temperature, Ground Fault, Surge Protection | ||
| Operating Temperature | -40°C + 70°C (with heater) | ||
| Relative Humidity | < 95%, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 1 year | ||
| Model (ZRC30) | ZRC30/ DC30 | ZRC30/ DC60 | ZRC30/ DC602 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 400Vac+10% | 400Vac+10% | 400Vac+10% |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Output Voltage | 200-1000VDC | 200-1000VDC | 200-1000VDC |
| Amperage | 100A | 200A | 100A x2 |
| Max. Power Output | 30kW | 60kW | 60kW |
| Net Weight | 130kg | ||
| Dimension | 500 × 650 x 590mm | ||
| LCD Display | 7” Touch Screen | ||
| Safety Compliance | IEC 61851 | ||
| Multiple Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Residual Current, Over Temperature, Ground Fault, Surge Protection | ||
| Operating Temperature | -40°C + 70°C (with heater) | ||
| Relative Humidity | < 95%, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 1 year | ||
| Model (ZRC40) | ZRC40/ DC60 | ZRC40/ DC120 | ZRC40/ DC160 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 400Vac+10% | 400Vac+10% | 400Vac+10% |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Output Voltage | 500VDC | 1000VDC | 1000VDC |
| Amperage | 125A | 200A | 100A x2 |
| Max. Power Output | 60kW | 120kW | 160kW |
| Net Weight | 130kg | ||
| Dimension | 840 × 950 x 1740mm | ||
| LCD Display | 7” Touch Screen | ||
| Safety Compliance | IEC 61851 | ||
| Multiple Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Residual Current, Over Temperature, Ground Fault, Surge Protection | ||
| Operating Temperature | -40°C + 65°C (with heater) | ||
| Relative Humidity | < 95%, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 1 year | ||
| Model (ZRC40) | ZRC40/ DC60 | ZRC40/ DC120 | ZRC40/ DC160 |
| Power Supply | 1P+N+ PE | 3P+N+ PE | 3P+N+ PE |
| Input Voltage | 400Vac+10% | 400Vac+10% | 400Vac+10% |
| Input Frequency | 50-60Hz | 50-60Hz | 50-60Hz |
| Output Voltage | 500VDC | 1000VDC | 1000VDC |
| Amperage | 125A | 200A | 100A x2 |
| Max. Power Output | 60kW | 120kW | 160kW |
| Net Weight | 130kg | ||
| Dimension | 840 × 950 x 1740mm | ||
| LCD Display | 7” Touch Screen | ||
| Safety Compliance | IEC 61851 | ||
| Multiple Protection | Over Voltage, Under Voltage, Over Current, Short Circuit, Residual Current, Over Temperature, Ground Fault, Surge Protection | ||
| Operating Temperature | -40°C + 65°C (with heater) | ||
| Relative Humidity | < 95%, non-condensing | ||
| Cable Length | 5m Standard Cable | ||
| Warranty | 1 year | ||
Zura Charge Sdn Bhd
Powering a Sustainable Future. Discover our EV charging solutions and join us in creating a greener world. Contact our team for more information or partnership opportunities. Let’s drive together toward a sustainable future!
Zura Charge Sdn Bhd © 2023. All Rights Reserved.
